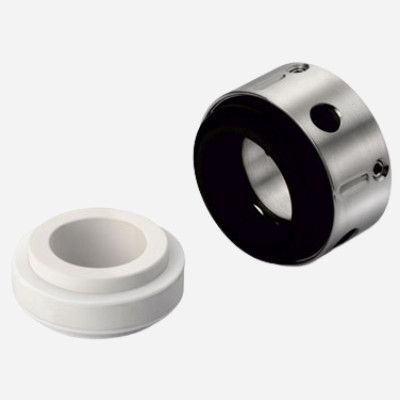

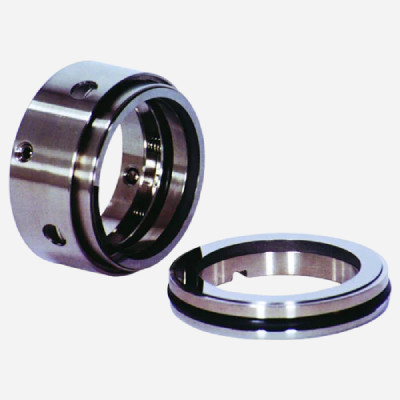

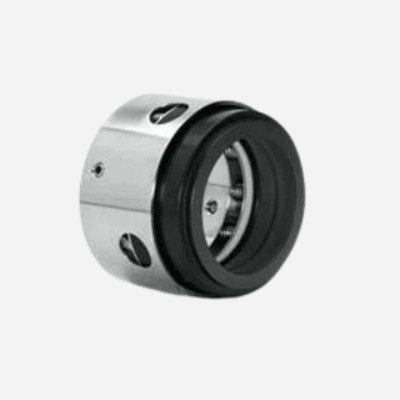

Multi Spring Mechanical Seals

Multi spring mechanical seal is a sealing device used for multiple springs. It provides a constant biasing force on a sealing element, traditionally a rubber or polymer material. This multi spring seal is applied widely from pumps and compressors to mixers and agitators.

The spring mechanical seal can also maintain a consistent sealing force over time. This way, it becomes ideal for high-pressure and high-temperature environmental use. Moreover, mechanical seal multi spring can handle a wide range of media, including liquids, gases, and even some solids. It is also chemical attack resistant, which makes it a suitable choice for multiple industries, like chemical processing, pharmaceuticals, and food and beverage.

Multi spring seal is highly durable and versatile. You can install and maintain it effortlessly as it is designed with a straightforward installation process. Therefore, a multi spring mechanical seal does not require frequent maintenance or replacement.

Overall, the spring mechanical seal is a reliable and efficient choice for a wide range of selling applications. This mechanical seal multi spring offers a strong, consistent sealing force and is resistant to a variety of media and environmental conditions, making this multi spring seal an excellent choice for various industrial applications.

Therefore, select this high-quality, reliable seal for your product and ensure acquire the best possible performance and customer satisfaction. This way, you can acquire success for your products and business



Materials Used:

  • Seal Ring Face: Carbon, SIC, TC
  • Mating Ring Face: SIC, TC, Ceramic
  • Secondary Seals: Viton, EPDM, Buna-N, FFKM
  • Metal Parts: SS316

Applications

Multi-spring mechanical seals are widely used in the chemical and pharmaceutical industry, pulp and paper industry, water and wastewater industry, building services industry, food and beverage industry, and water and sewage water pumps.



Performance Range

  • Pressure: 25 Bars (Maximum)
  • Temperature: -20c to +220c
  • Speed: 2900 rpm (Maximum)
  • Sizes: 18mm to 100 mm
