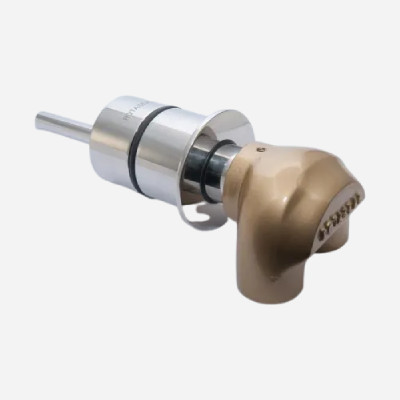

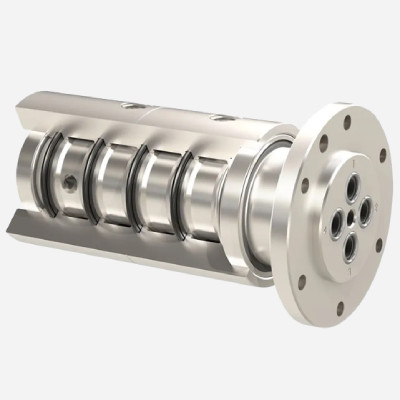

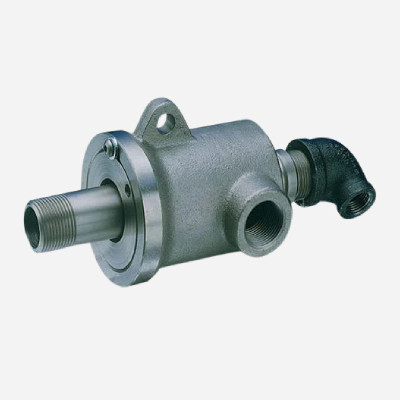

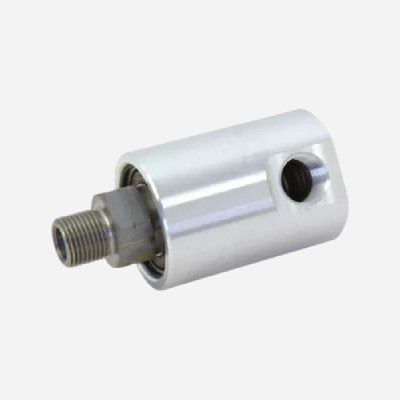

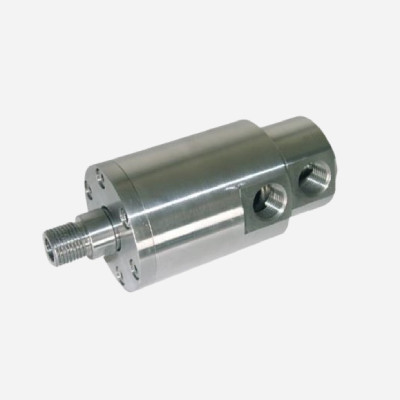

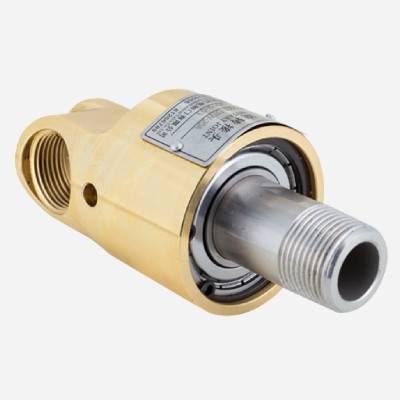

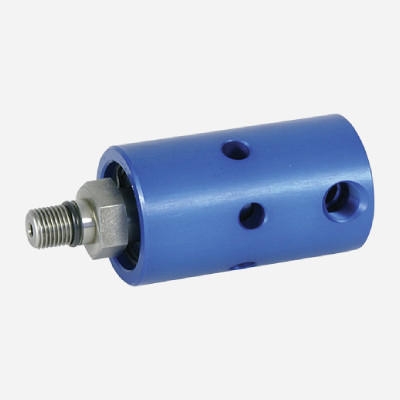

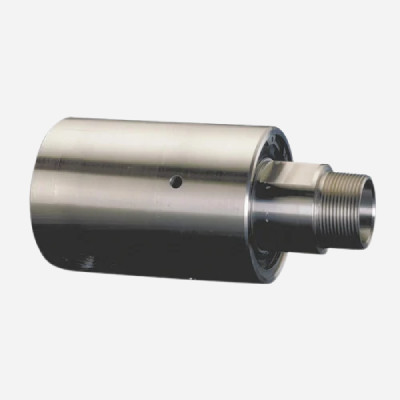

Rotary Joints

In various fields, Rotary joints are successfully used for various services. We are the leading Rotary joints manufacturers and suppliers of Rotary joint manufacturing. We provide a complete range of different Rotary joint products to meet the needs of different industries in India. As one of the best Rotary union manufacturers in india, we are India's leading manufacturer.

The Rotary joints are mainly used for the leakproof transfer of different fluids, hot and cooling water, hydraulic oil, steam, air, and gases. We design and manufacture the best-class Rotary joints of the widest range. Our manufactured Rotary joints can handle steam and water applications in printing, food processing, rubber, papers, petrochemicals, textile, plastics and packaging, tires and steel, and fiber industries.

As the leading Rotary joint manufacturer in india, our Rotary joints also performed well for international standards. We have been recognized for the Rotary joints' best quality, performance, and reliability. We, a Rotary joint manufacturer, have all arrangements for you if you want to customize Rotary joints. We meet your requirements and customize the Rotary joints as per your needs.

The Rotary joints manufacturers in india are mainly used to supply fluid like water, steam, or oil as a roll from one end to another. Both journal ends are available in the end part. When only one end of the journal is available instead of two, the fluid is supplied from one end and discharged from the other.



Operating Limits:

  • Pressure: 750 PSI/51 BAR max
  • Temperature: 150 °C/300 °F max
  • RPM: 3500 max

Applications

Steam, Water, and Hot oil service.



Material

  • Seal Face: Ceramic, Tungsten Carbide,Sic, Carbo Graphite
  • Secondary Seals: Nitrile, Viton, PTFE etc.
  • Metal Parts: Carbon steel, brass, stainless steel, etc.
  • Available size: ¼”(DN08) to 4” (DN100)
  • Connection: NPT, Metric (RH/LH), Quick Release, BSP, Quick Release
